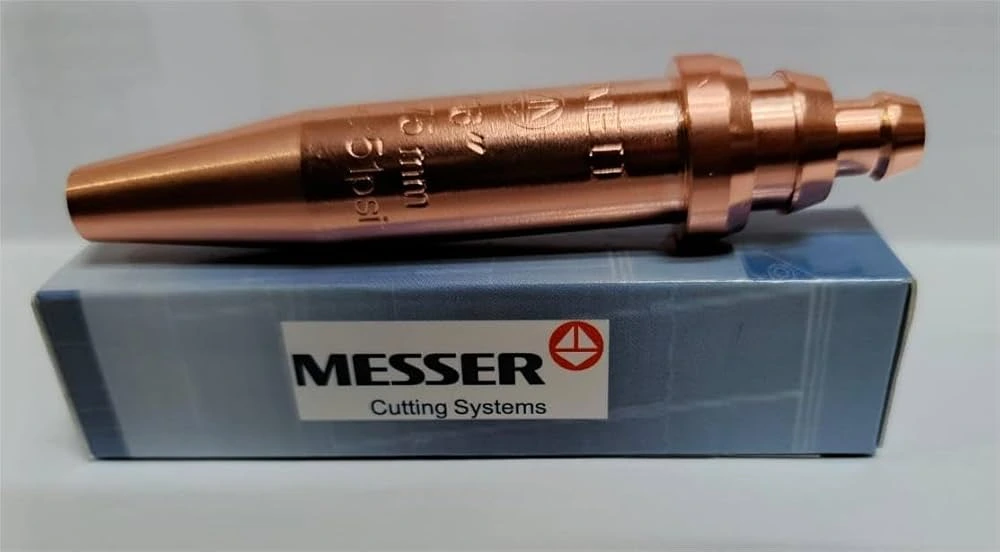

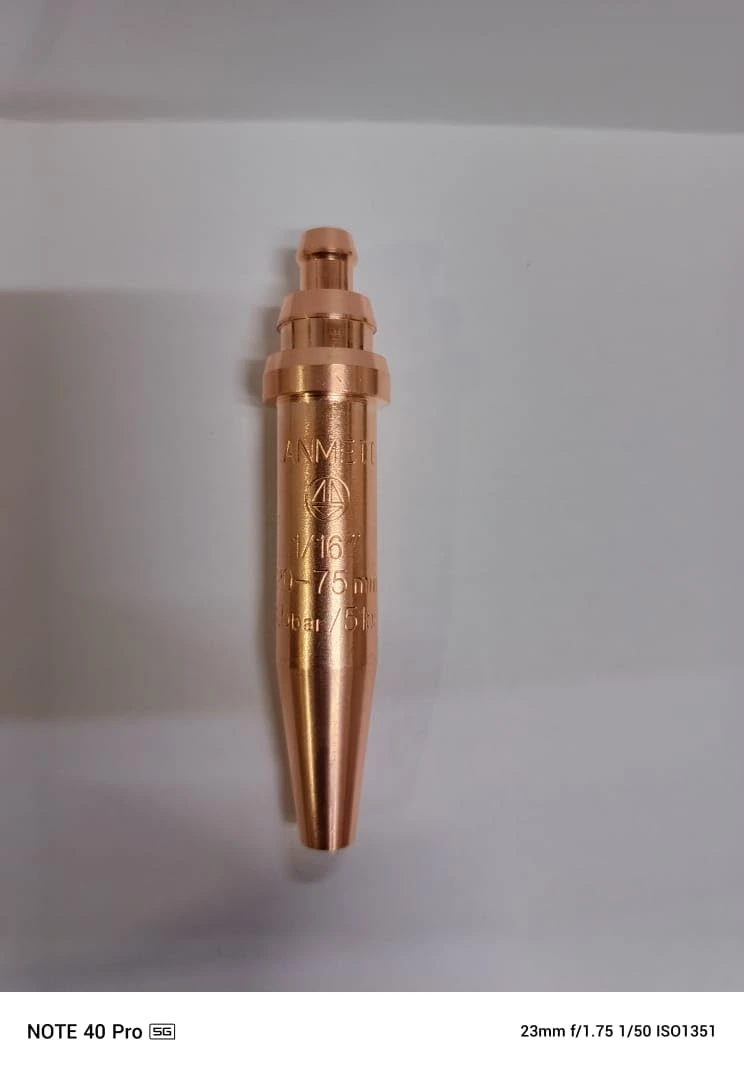

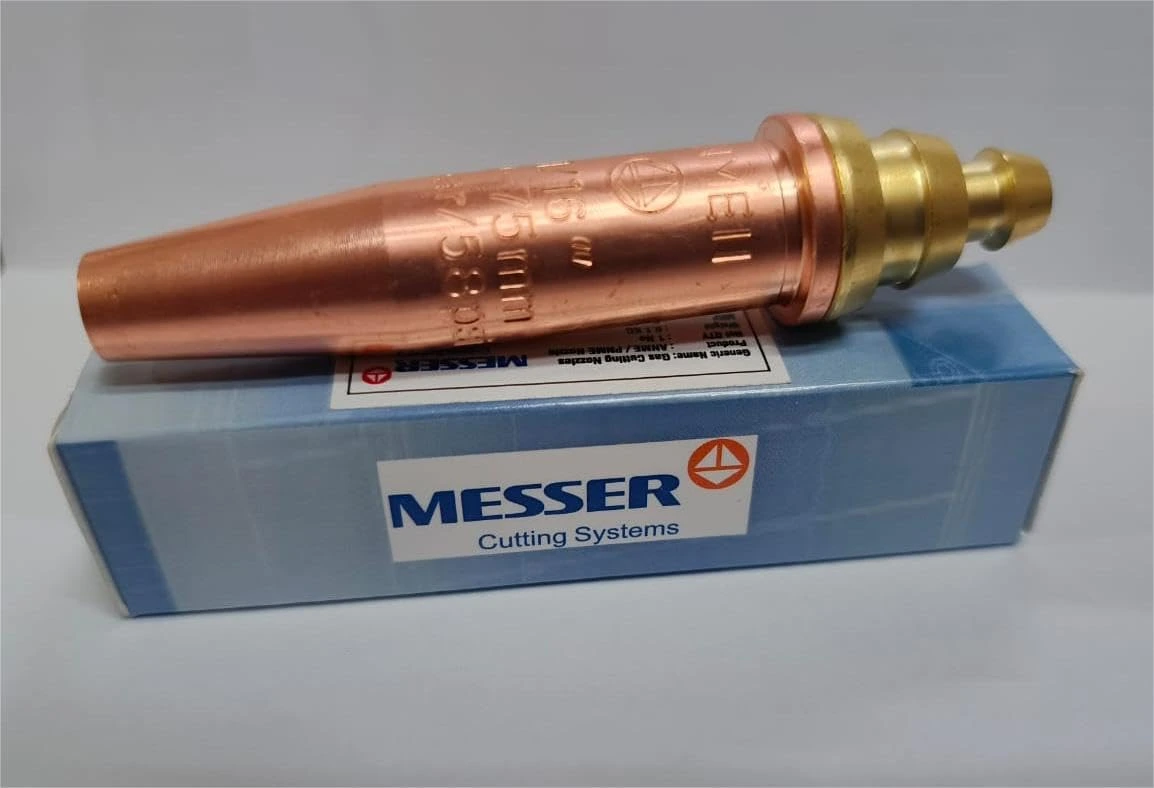

### Product Overview The ANM CUTTING NOZZLE by Messer Cutting Systems is a precision-engineered Oxy-Acetylene cutting tip designed to deliver exceptional cutting speeds, clean kerf walls, and rapid preheating in industrial flame cutting operations. Manufactured to exacting hydrodynamic tolerances from premium high-conductivity copper alloys, this cutting nozzle is engineered to withstand intense thermal radiation while directing a perfectly laminar stream of cutting oxygen onto the steel workpiece. Available in variable sizing options to accommodate steel plates from sheet thickness up to heavy structural slabs, it is the definitive consumable for fabricators demanding flawless cut quality and gas economy. ### Key Engineering Features & Advantages * **Optimized Gas Mixing Geometry:** Features precision-machined preheat splines and mixing flutes that guarantee uniform combustion of Oxy-Acetylene mixtures for intense, rapid flame ignition. * **Laminar Oxygen Cutting Jet:** Hydrodynamically polished internal oxygen bores prevent jet turbulence, producing exceptionally sharp cut edges with minimal bottom slag and narrow kerf waste. * **Superior Thermal Heat Dissipation:** Crafted from tellurium copper and solid brass alloy that dissipates radiant heat rapidly, preventing tip melting and extending operational life by up to 50% over generic nozzles. * **Spatter & Slag Resistance:** The smooth external tip face resists molten metal spatter adhesion, allowing for easy cleaning with standard nozzle cleaners without enlarging tip orifices. * **Reduced Post-Cut Finishing:** High-precision flame geometry produces clean cut surfaces that minimize the need for labor-intensive post-cut grinding, chipping, and edge machining. ### Technical Specifications & Material Properties The ANM CUTTING NOZZLE belongs to the renowned ANME / ANM standard series, compatible with genuine Messer cutting torches and automated flame cutting machines. Each nozzle size is stamped with distinct identification markings indicating the nominal bore size and recommended operating plate thickness range. The two-piece (or solid seat) construction ensures absolute concentricity between the preheat flame ring and the central cutting oxygen stream, which is critical for preventing bevel runout and maintaining vertical cut accuracy across long cutting passes. ### Application Areas & Use Cases The high cutting efficiency of the ANM CUTTING NOZZLE makes it essential across diverse steel processing environments: * **Heavy Steel Plate Profiling:** Precision flame cutting of intricate components on CNC automated shape cutting machines and optical tracking systems. * **Structural Fabrication & Pipework:** manual cutting and beveling of pipe ends, structural flanges, and gusset plates in refinery and pipeline construction. * **Shipyard Repair & Maintenance:** Removing damaged hull sections and cutting stiffener plates in marine dry docks. * **General Engineering & Maintenance:** Routine metal cutting, slotting, and bolt removal in industrial manufacturing workshops. ### Operational & Safety Guidelines For optimal cutting results, always match the nozzle orifice size directly to the thickness of the steel plate being cut. Set the oxygen and fuel gas regulator pressures strictly to the Messer cutting parameter tables; excessive oxygen pressure can cause cut wash-out, while insufficient fuel gas pressure results in slow preheat times and pop-back. Clean the preheat orifices regularly using appropriate soft-wire nozzle cleaners to maintain a balanced, symmetrical flame.
